Cantilever Racking

Cantilever Racking

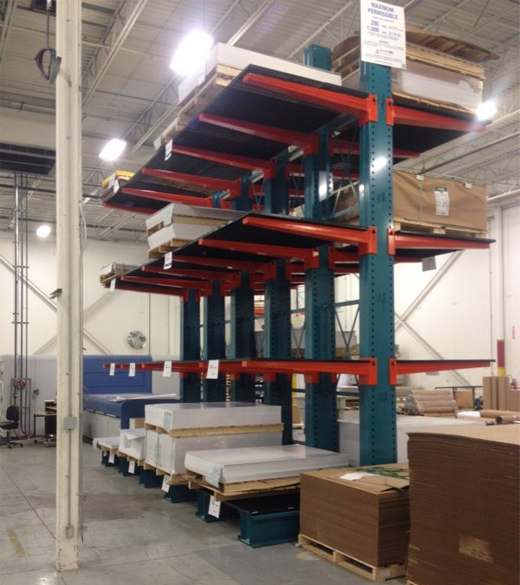

Cantilever racking offers precision inventory control for any business using material of various lengths and sizes. Typical loads include metal extrusions, steel bars, tubes, pipes and lumber. With the use of narrow aisle or guided rail systems, high-density Cantilever racking maximizes floor and vertical space. Floor guide rails and entry guards make these industrial racking systems safe and easy to use. Angle runners are also available for custom material handling equipment.

Standard Column Heights: 6' - 32'

Standard Arm Lengths: 18" - 72"

Vertical Brace Panel Widths: 24" - 90"


  • Per Column (Side) 3,800lbs - 100,000lbs
  • Per Arm (U.D.L. each) 624lbs - 8,300lbs
