VERTICAL LIFT MODULE (VLM)

The Vidir Vertical Lift Module (or VLM) is Vidir’s revolutionary new automated storage and retrieval system that provides smart, adaptable inventory management to maximize density and increase productivity.

The VLM uses two tray towers, one in front and one in back, along with a central elevator. Trays are extracted and presented quickly, efficiently, and at an ergonomic height for the operator.

Storing the trays in vertical towers allows for a minimal footprint, saving up to 85% of floor space.  The VLM optimizes intralogistics by using a user-friendly retrieval system for raw materials.

PRODUCT ADVANTAGES

AUTOMATIC HEIGHT DETECTION

The VLM uses cutting-edge technology and intelligent software to accurately measure the amount of storage space required by each tray. It performs complex calculations to determine the most efficient storage location to optimize inventory density every time items are stored or retrieved.  The vertical orientation improves the overall throughput speed and increases capacity.

INTELLIGENT SOFTWARE

Along with maximizing density, Vidir’s intelligent software ensures the material handling process is as smooth and efficient as possible. Pick times are kept to a minimum to increase productivity and remove costly bottlenecks.  The VLM's servo motors provide an unparalleled combination of speed, power, and accuracy to reduce process time.

TOTAL CONTROL

The VLM puts you in control of your inventory while shrinking your storage footprint. The easy-to-use software interface allows you to pick and stock item lists, integrate with your ERP system, run reports from any connected PC, and includes remote access for service diagnostics, maximizing your productivity and ROI.

BEST-IN-CLASS INNOVATIONS

Vidir’s Vertical Lift Module is built to save you time. It provides ergonomic access while maximizing inventory space with a variable spacing of trays. Built with industry-leading engineering and servo motors, front-facing maintenance access, and best in class innovations, Vidir’s VLM modernizes operations in material handling technology.



Industry First Servo Motors – Offer higher velocity and accuracy, with Best-in-Class 10HP lift capacity.

Chain Drive – For Best-in-Class performance, durability, and safety.



Vidir is proud to include the VLM as part of its Vertical Storage family of Solutions. Vidir is excited to introduce innovations to continue its industry-leading support of high-density vertical inventory management.

ENVIRONMENTAL IMPACT

The VLM maximizes production and efficiency while ensuring proper environmental sustainability.  Using friendly, recyclable materials, Vidir takes pride in contributing to reducing CO2 emissions and lowering its carbon footprint.

By using controlled environment solutions, these automated storage systems provide security and protection for materials while optimizing inventory operations.

Gallery


TECH SPECS

A Standard VLM Package includes the following:

  • Motors:
    Vertical Drive System – 10HP Vertical Servo Motor
    Horizontal Drive System – 2HP Servo Motor
  • Controls:
    Auto Retrieval Tray Control w/ 12″ HMI Touchscreen Display
    Right or Left Side Location
  • Electrical:
    Feeds from the top right of the machine
    480V 3Phase 30 Amp
  • Retrieval Speeds:
    Vertical Lift Speed – Max 1.67ft per second
    Horizontal Feed Speed – Max 0.83ft per second
  • Light Curtains: Included
  • Variable Height Sensors: Included
  • Overall Capacity:
    132,000 lbs.   |   60,000 kg
  • Max Load Per Tray:
    600 or 1,000 lbs Options Available
  • Full Enclosure
  • Color: VM Textured White
  • cCSAus Mark
  • Seismic Ready Design
  • 2 Year Manufacturer’s Warranty

OPTIONS & ACCESSORIES

  • FOLD OUT EXTERNAL TRAY ACCESS ARMS

    Arms fold out from below the access point to allow tray access to be extended in front of the unit for loading and unloading empty trays.

  • TRAY TRANSPORTER

    The Transporter allows trays to be removed from the unit, and easily wheeled to a working area. Intelligent software marks when trays have been removed to retain tracking on all items in the VLM.

  • PICK-TO-LIGHT

    An Alphanumeric Display or Horizontal LED Strip helps easily identify where items are stored on the tray, increasing the speed and efficiency of pick and stock functions.

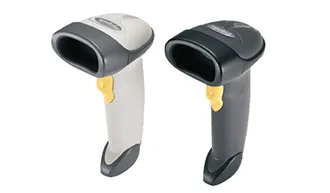

  • BAR CODE SCANNER

    Pick or store parts with a quick scan of the bar code, increasing accuracy and efficiency. Create large Pick and Stock Lists in a fraction of the time.

  • BADGE READER

    Simplify the login process with an easy-to-use Badge Reader. Simply scan the badge and start using the machine, while maintaining security and operator permissions.

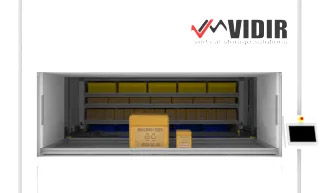

  • MULTIPLE LOAD CAPACITIES

    Use the desired tray capacity for your storage needs. Each tray capacity is monitored in the software to ensure no tray will be overloaded.

  • COLOR CHANGE (RAL)

    RAL color changes are available. Customize the look of your carousel to match company colors or designs.

  • PM PACKAGES

    An annual inspection program designed to extend the life of the VLM and ensure consistent and reliable performance. Varying program lengths are available to fit your maintenance requirements.
